Metal fences and railings provide a blend of durability, flexibility, and sophistication, making them perfect for security and enhancing the visual appeal of your property, perfect for homes and gardens, driveways, and commercial premises. Our extensive selection of metal fences are crafted from premium-quality materials including steel, aluminium, and wrought iron, and come in a range of styles, colours, and finishes to complement and enhance the feel of your property.

At Trevor Burns Fencing Contractors, we pride ourselves on delivering a tailor-made, personal service, with metal fences and railings available to include unique decorative touches such as spikes, scrolls, finials, or personalised motifs that enhance character and value. Engineered to endure dverse weather conditions, our metal fences and railings stand strong against rust and corrosion, ensuring your investment not only provides privacy and security but also lasting beauty. With over four decades of expertise in the installatio nof metal fences and railings the Bishop Auckland and County Durham area, extending across the North East and North Yorkshire, we are committed to providing quality metal fences and railings that last for years to come.

Round Fences / Railings

Square Fences / Railings

Ornate Fences / Railings

Finial Top Fences / Railings

Bow Top Fences / Railings

Playground Fences / Railings

Guard Rails

Round Metal Fences / Railings

Our collection of round metal railings provide a traditional and robust boundary for a variety of applications, from homes and gardens, to public spaces and country estates and create a harmonious and pleasing look. With heights ranging from 1.2 metres to 2 metres, these round railings can be made available with blunt, domed or spiked tops. We supply and install a range of styles, all manufactured to customer requirements. Matching gates can also be supplied in any width or height.

RR1

This round railing fence features a classic and robust design with a convex style top pattern. Constructed with convex round vertical bar railings set at a 100mm gap, the panels feature solid round verticals and a horizontal support rail, anchored with rolled steel joist posts. The fence is available in a range of finishes with heights from 1.2m to 2m.

TYPE: Convex round vertical bar railings set at 100mm gap.
DESIGN: Panels have solid round verticals and robust horizontal support rail.
POSTS Rolled steel joist posts.
FINISH: Hot dip galvanised or galvanised & polyester powder coated.
SIZES: Height 1.2m to 2m.

Request Quotation

RR2

A round railing fence with spiked tops, designed for sturdiness and intruder prevention. It consists of spiked-top round vertical bar railings set at a 100mm gap and rolled steel posts which support the structure. This fence is available in a range of finishes and variety of heights.

TYPE: Spiked top round vertical bar railings set at 100mm gap.
DESIGN: Panels have solid round verticals with spike design tops.
POSTS Rolled steel joist posts.
FINISH: Hot dip galvanised or galvanised & polyester powder coated.
SIZES: Height 1.2m to 2m.

Request Quotation

RR3

A simple, widely recognisable design throughout the UK. This round railing fence features solid rails and blunt tops, with railings are set with a standard gap of 100mm. This fence can be finished in a range of finishes including hot-dip galvanised and polyester powder coating.

TYPE: Blunt top round vertical bar railings set at 100mm gap.
DESIGN: Panels have solid round rails with blunted tops.
POSTS Rolled steel joist posts.
FINISH: Hot dip galvanised or galvanised & polyester powder coated.
SIZES: Height 1.2m to 2m.

Request Quotation

RR4

An economical yet durable alternative which features hollow rails. Hollow, flat-top vertical bars are welded to mild steel horizontals at 100mm intervals. This fence is available in a range of heights and finishes.

TYPE: Flat top round hollow 25mm vertical bar railings set at 100mm gap.
DESIGN: Panels have hollow rails with flat tops welded to mild steel horizontals.
POSTS 102×44 RSJ at 2750 post centres.
FINISH: Hot dip galvanised or galvanised & polyester powder coated.
HEIGHT: 1.8m | 2m | 2.4m.

Request Quotation

RR5

Hollow rails with elegant forged tops provide protection from the elements, ensuring longevity and a sophisticated appearance.

TYPE: Forged top round hollow 25mm vertical bar railings set at 100mm gap.
DESIGN: Panels have hollow rails with forged tops welded to mild steel horizontals.
POSTS 102×44 RSJ at 2750 post centres.
FINISH: Hot dip galvanised or galvanised & polyester powder coated.
HEIGHT: 1.8m | 2m | 2.4m.

Request Quotation

RR6

A round railing fence with hollow rails and angled tops designed to deter climbers. Matching gates are also available in any width or height.

TYPE: Angled top hollow vertical bar railings.
DESIGN: Panels have hollow rails with angled tops welded to mild steel horizontals.
MATERIAL: Steel.
FINISH: Either galvanised or polyester powder coated.
HEIGHT: 1.8m | 2m | 2.4m.
SUPPORTS: 102×44 RSJ at 2750 post centres.
GATES: Matching in any width or height.

Request Quotation

Square Metal Fences / Railings

Suitable for commercial and industrial settings, the square metal railings range comprise of panels with square hollow verticals set at a maximum of 100mm gap, ideal for contemporary and minimalist designs as they provide a modern and sleek look. The verticals are held in position by heavy duty horizontal rails oriented so that two of the rail edges are at a right angle to the horizontal support rails. The horizontal suppport rails are held in position by rolled steel joist posts. For uneven ground, special angle cleats allow the panels to be stepped and for more severe cases, the panels can be custom-made to match the contour of the land. Domed headed bolts and permacore security nuts are supplied as standard. The vertical rails are topped in either an angle or square design. Matching personnel and vehicle gates can also be supplied.

SQR1

Form meets function, these hollow rails are crowned with elegant forged tops to both protect against the elements and enhance aesthetic appeal. This fence not only promises durability but also delivers a modern, sleek look adaptable to a range of settings.

TYPE: Square vertical bar railings set at 100mm gap.
DESIGN: Panels have square hollow 25×25 verticals and robust horizontal support rail.
POSTS Rolled steel joist posts 102×44 RSJ at 2750 centres.
FINISH: Hot dip galvanised or galvanised & polyester powder coated.
SIZES: Height 1.8m, 2m, 2.4 and 3m.

Request Quotation

SQR2

Featuring embellishments on the main supporting posts with elevates the overall aesthetic. Set at 100mm gaps for uniformity, the panels are designed for durability and visual appeal.

TYPE: Square vertical rails set at 100mm gap.
DESIGN: Panels with square hollow 25×25 verticals and horizontal support bars.
POSTS Rolled steel joist posts 102×44 RSJ at 2750 centres.
FINISH: Hot dip galvanised or galvanised & polyester powder coated.
SIZES: Height 1.8m, 2m, 2.4 and 3m.

Request Quotation

SQR3

Timelessly elegant with spear-topped verticals, create a classical ambiance for your property. This fence ensures a versatile fit for various landscapes and is a distinguished choice for property boundaries.

TYPE: Spear topped square vertical rails set at 100mm gap.
DESIGN: Panels with square hollow 25×25 verticals and horizontal support bars.
POSTS Rolled steel joist posts 102×44 RSJ at 2750 centres.
FINISH: Hot dip galvanised or galvanised & polyester powder coated.
SIZES: Height 1.8m, 2m, 2.4 and 3m.

Request Quotation

SQR4

Engineered for security, cranked/angled top verticals present a formidable barrier for intruders. The unique intruder-proof design is available in heights up to 3 meters and a range of finishes.

TYPE: Square vertical deterrent railings.
DESIGN: Angle top verticals with intruder-proof crank at the top.
MATERIAL: Rolled steel.
FINISH: Hot dip galvanised or galvanised & polyester powder coated.
SIZES: Height 1800, 2000, 2400, 3000mm with posts 102×44 RSJ at 2750 centres.

Request Quotation

SQR5

A fence commonly used throughout car parks, commercial yards and premises, square railings are fixed to solid rails.

TYPE: Square topped with square vertical rails set at 100mm gap.
DESIGN: Panels with square hollow 25×25 verticals and horizontal support bars.
MATERIAL: Rolled steel.
FINISH: Hot dip galvanised or galvanised & polyester powder coated.
SIZES: Height 1800, 2000, 2400, 3000mm with posts 102×44 RSJ at 2750 centres.

Request Quotation

SQR6

This metal fence is similar in design to our SQR5 railings, suitable for offices, commerical premises and compounds. This fence is distinguished by its angled tops and is available in a range of heights and finishes, with matching personnel and vehicle entrance gates available.

TYPE: Angled top square vertical fencing.
DESIGN: Angle top verticals with with horizontal support rails.
MATERIAL: Steel.
FINISH: Hot dip galvanised or galvanised and polyester powder coated.
HEIGHT: 1800, 2000 and 2400mm
POSTS: Set at 2.8m nominal centres. 70×70 or 80×80 SHS
GATES: Matching personnel and vehicle entrance type.
USE: General purpose perimeter fencing.

Request Quotation

SQR7

Designed with security in mind, the sawtooth/serrated top edge challenges intruders without compromising on design. The unique profiled serrated top acts a a deterrent, making it an ideal choice for schools and secure areas such as car parks, offices and compounds.

TYPE: Sawtooth top edge square vertical fencing.
DESIGN: Profiled serrated top acts as obstacle to intruders.
MATERIAL: Steel.
FINISH: Either galvanised or polyester powder coated.
HEIGHT: 1800, 2000 and 2400mm
POSTS: Set at 2.8m nominal centres. 70×70 or 80×80 SHS
GATES: Matching.
USE: Security fencing.

Request Quotation

Ornate Metal Fences / Railings

Ornate metal railings are a decorative and luxurious option. They feature intricate and elaborate bars that create a stunning look for your property. Ornate railings are ideal for historical and classical settings, as they offer a rich and ornamental aesthetic. They are also suitable for hotels, country estates, manor houses, stately homes or private residance. Available in different heights, widths, and colours with your choice of design such as floral, scroll and lattice.

OR1

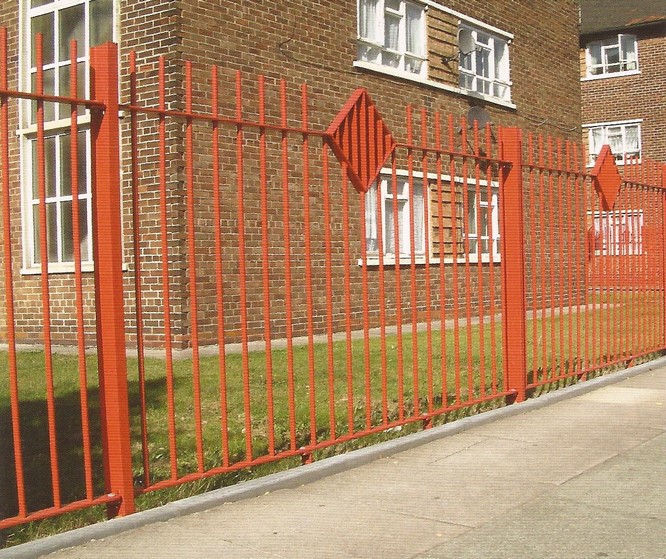

Elegant vertical bar railings topped with blunt ends. The design features level bars, adorned with raked diamond panels crafted from rolled steel. Height options range from 1.00m to 2.70m, making them versatile for various applications. These railings can include matching gates perfect for enclosing offices, schools, housing estates, and homes.

TYPE: Ornate vertical bar railings with blunt tops.
DESIGN: Level bar tops with raked or radiused diamond panel.
MATERIAL: Rolled Steel.
FINISH: Either hot dipped galvanised or galvanised & polyester powder coated.
HEIGHT: Range from 1 metre to 2 metres and 2.7 metre nominal length.
SUPPORTS: Posts and infill bar size increases with fence height.
GATES: Matching.
USE: Boundary fencing for office, school, housing estate and home.

Request Quotation

OR3

Fluted vertical bar railings with captivating waved tops, crafted in 2.8m sections of steel which stand at 1.8 metres, these railings ensure beauty and durability. This type serves as ideal boundary fencing for offices, schools, housing estates, and homes, blending security with aesthetic appeal. Gates available to match.

TYPE: Ornate vertical bar railings with waved tops.
DESIGN: Uneven height waved bar tops in 2.8m sections.
MATERIAL: Steel.
FINISH: TBA.
HEIGHT: 1.8 metres.
SUPPORTS: Posts and infill bar size increases with fence height.
GATES: Matching.
USE: Boundary fencing for office, school, housing estate and home.

Request Quotation

OR4

Ornate metal railings, intricately designed with a inline ring sections at the top and base, creating a visually stunning barrier. Available in heights of 1200mm, 1400mm, 1600mm, and 1800mm. Choose from either a hot-dip galvanised or polyester powder-coated finish for longevity and style.

TYPE: Ornate metal railings.
DESIGN: Decorated railings with inline ring section at top and base.
FINISH: Hot dip galvanised or Galvanised and polyester powder coated.
HEIGHT: 1200mm, 1400mm, 1600mm and 1800mm.
POSTS: 1.8m apart, post and infill bar size inreases with fence height

Request Quotation

OR5

This fence is artfully topped with spiked rails and posts for an imposing yet elegant appearance, with inline ring sections for added chracter. This fence is available in a range of heights and finishes.

TYPE: Ornate fencing.
DESIGN: Upper inline ring section topped with spiked rails and posts.
FINISH: Hot dip galvanised or Galvanised and polyester powder coated.
HEIGHT: 1800mm, 2000mm and 2400mm.
POSTS: 3m apart, post and infill bar size inreases with fence height

Request Quotation

OR6

Ornate vertical bars with chevrons spanning two rails providing strength and durability. These railings come in a choice of finishes and heights. Matching gates complement these railings, making them suitable for parks, schools, housing estates, and offices.

TYPE: Ornate vertical bar.
DESIGN: Ornate metal railings with chevrons spanning two rails.
MATERIAL: Steel.
FINISH: Hot dipped galvanised or galvanised & polyester powder coated.
HEIGHT: 1600, 1800 and 2000mm.
SUPPORTS: 2.7m apart, posts and infill bar size increases with fence height.
GATES: Matching.
USE: Boundary fencing for parks, schools, housing estate and offices.

Request Quotation

Finial Top Metal Fences / Railings

Finial top railings are a distinctive option and feature pointed/shaped bars that create a striking and eye-catching look. Finial top railings are ideal for adding character and personality to your space, with a unique and customisable aesthetic. They are also suitable for enhancing the security and privacy of your property, as they provide a sharp and deterrent barrier. Our finial top railings are available in different heights, widths, and colours, and you can choose from various styles, such as spear, ball, or pineapple.

FTR1

These poker head finial top railings offer a traditional yet imposing design. This design not only enhances the visual appeal of your property but also adds a layer of security, deterring unwanted guests with its pointed tops.

TYPE: Poker head finial top.
DESIGN: Traditional vertical bar railings with aligned spiked tops.
MATERIAL: Metal.
FINISH: Hot dip galvanised or galvanised & polyester powder coated.
SIZE: Range from 1.2 metres to 2 metres height, 100mm bar gap max..

Request Quotation

FTR2

The arrow head finial topped railings feature a unique concave arrangement of arrow head tops, offering a blend of elegance and protection. The sharp design of the arrow heads adds a sophisticated touch to the perimeter of your property while serving as a deterrent. These railings are suited for both residential and commercial properties looking for style and security.

TYPE: Arrow head finial topped railings.
DESIGN: Vertical bar railings with a concave arrangement of arrow head tops.
MATERIAL: Metal.
FINISH: Hot dip galvanised or galvanised & polyester powder coated.
SIZE: Range from 1.2 metres to 2 metres height, 100mm bar gap max.

Request Quotation

FTR3

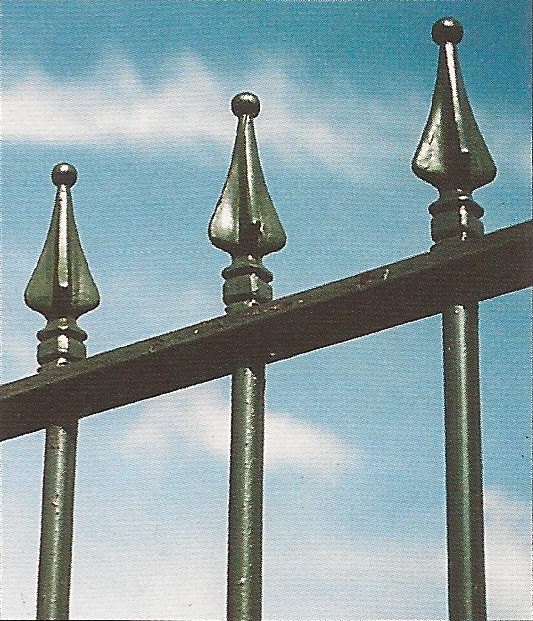

Characterised by their arrow flight tops, these finial railings offer a distinctive aesthetic. This design combines the security features of traditional metal railings with unique visual appeal.

TYPE: Finial Rails
DESIGN: Railings with horizontally aligned arrow flight tops.
MATERIAL: Metal.
FINISH: Hot dip galvanised or galvanised & polyester powder coated.
SIZE: Range from 1.2 metres to 2 metres height, 100mm bar gap max

Request Quotation

FTR4

These railings feature vertical bars adorned with aligned fleur-de-lis end sections, infusing your space with a touch of historical elegance. The intricate design of the fleur-de-lis not only beautifies your property’s boundary but also provides a secure barrier.

TYPE: Finail head railings.
DESIGN: Vertical bar railings with aligned fleur-de-lis end sections.
MATERIAL: Metal.
FINISH: Hot dip galvanised or galvanised & polyester powder coated.
SIZE: Range from 1.2 metres to 2 metres height, 100mm bar gap max.

Request Quotation

FTR5

With their aligned pyramidal end sections, these vertical bar railings offer a modern twist on traditional security fences. The sharp, geometric design of the pyramid tops serve as both an aesthetic feature and security measure.

TYPE: Finial headed.
DESIGN: Vertical bar railings with aligned pyramidal end sections.
MATERIAL: Metal.
FINISH: Hot dip galvanised or galvanised & polyester powder coated.
SIZE: Range from 1.2 metres to 2 metres height, 100mm bar gap max.

Request Quotation

FTR6

Combining functionality with ornamental elegance, the Ball Top Finial Vertical Bar Railings are perfect for those seeking a sophisticated boundary solution. The level bar tops are finished with ornate ball finials, offering a visually appealing and friendly boundary fence. Made from rolled steel and available in heights up to 2 meters.

TYPE: Finial vertical bar railings with ball tops.
DESIGN: Level bar tops with ball finish.
MATERIAL: Rolled Steel.
FINISH: Either hot dipped galvanised or galvanised & polyester powder coated.
HEIGHT: Range from 1 metre to 1.8 metres and 2.0 metre nominal length.
SUPPORTS: Posts and infill bar size increases with fence height.
GATES: Matching.
USE: Boundary fencing for office, school, housing estate and home.

Request Quotation

Bow Top Metal Fences / Railings

We supply and install a comprehensive range of metal bow top fences. Bow top railings are a soft, graceful option which feature curved and arched bars to create a smooth and flowing look. They are also suitable for creating a safe and friendly environment, as they provide a rounded and harmless barrier. From simple to more elaborate designs, we can provide the type of railings that match your requirements. The panels can be provided in a standard size or manufactured to non-standard lengths, with raked or radiused designs with gates available to match. The bow top raling selection comes in a range of simple designs such as standard bops, flat-topped or simple inner circles, to more intricate designs deaturing overlapping bow sections and ornate bows within bows. Security fixings and angle cleats are supplied as standard.

BT1

A harmonious blend of style and safety, featuring standard or custom lengths with raked or radiused bow tops. In a range of finishes and heights, these bow top railings are perfect for perimeter fencing in schools, playgrounds and parks.

TYPE: Bow Top Rails.
DESIGN: Supplied in standard or non-standard length, raked or radiused bow top.
MATERIAL: Metal.
FINISH: Galvanised and polyester powder coated.
HEIGHT: Range from 600mm to 2000mm.
SUPPORTS: Posts range from 50x50mm RHS to 102×44 RSJ
GATES: Matching.
USE: Perimeter fencing. Parks

Request Quotation

BT2

These overlapping bow railings offer a unique aesthetic, ideal for gardens, playgrounds and parks ensuring a secure and welcoming environment.

TYPE: Overlapping Bow.
DESIGN: Infill bar size increases with height of fence.
MATERIAL: Metal.
FINISH: Galvanised and polyester powder coated.
HEIGHT: Range from 600mm to 2000mm.
SUPPORTS: Posts centres 2.8 metres max.
GATES: Matching.
USE: Perimeter fencing. Gardens and Parks.

Request Quotation

BT3

Ornate bow top railings add elegance of any space. These railings blend seamlessly into upscale environments with their sophisticated design.

TYPE: Ornate Bow Top.
DESIGN: Infill bar size increases with height of fence.
FINISH: Galvanised and polyester powder coated.
HEIGHT: Range from 1000mm to 2000mm.
SUPPORTS: Posts centres 2.9 metres max.

Request Quotation

BT4

Double bow top railings feature a second internal bow for an added layer of visual interest and complexity which provide an aesthetically pleasing boundary.

TYPE: Double bow top railings with second internal bow.
DESIGN: Infill bar size increases with height of fence.
FINISH: Hot dip galvanised or galvanised and polyester powder coated.
HEIGHT: 1000mm, 1200mm, 1400mm, 1600mm, 1800mm and 2000mm.
SUPPORTS: Posts centres 2.8 metres max.

Request Quotation

BT5

Square bow top rails introduce a contemporary twist to the traditional bow top design. Perfect for modern landscapes, they offer a sleek, geometric aesthetic without compromising on durability.

TYPE: Square bow top rails.
DESIGN: Infill bar size increases with height of fence.
FINISH: Hot dip galvanised or galvanised and polyester powder coated.
HEIGHT: 1000mm, 1200mm, 1400mm, 1600mm, 1800mm and 2000mm.
SUPPORTS: Posts centres 2.8 metres max.

Request Quotation

Metal Playground Fences / Railings

We can provide and install playground railings in compliance with the requirements of BS EN 1176 which specificy the gaps between rails are set not to exceed 89mm so as to avoid children getting their heads jammed between the safety railings. Rail bars are available in two different diameters, a standard 12mm infill and a more robust 16mm infill. The bars are held in position by a sturdy horizontal rail and the panels are available with 2.8 metre centres or can be custom-made to a non-standard length. A matching hydraulic safety gate can be provided. Our playground fences are available in a variety of heights, widths and bright/cheerful colours to create and lively and playful look to playgrounds, schools and parks.

BTPG

These bow top Playground Railings are designed to meet the safety standards set by BS EN 1176, ensuring a secure and enjoyable environment for children at play. Completing the setup is a complementary safety gate, designed to provide easy, safe access.

TYPE: Bow Top Playground Railings to equipment specification BS EN 1176.
DESIGN: Gaps not exceeding 89mm and neck entrapment free.
MATERIAL: Mild Steel horizontal rails with 12mm or 16mm verticals.
FINISH: Hot Dip Galvanised or galvanised and polyester powder coated.
HEIGHT: 1000mm or 1200mm
POSTS: 50x50mm RHS set at 2800mm centres.
GATES: Complementary safety gate, see Hydgate1
USE: Playground safety railings and perimeter fencing.

Request Quotation

Metal Guard Railings

Designed to protect adults and children at road junctions and crossings, pedestrian guard rails can also be adapted for usage around athletics tracks and play areas. They feature strong and solid bars that create a reliable and effective look ideal for preventing accidents and injuries. Our guard rails are also suitable for marking boundaries and directing traffic, as they provide a visible and clear barrier. Bars can be made available in different styles such as tubular, flat, or angled. The panels are a standard 2 metres long but can be fabricated to match individual customer requirements in a variety of heights, widths and colours

GDRAIL1

Pedestrian Guard Rails ensure the safety and protection of pedestrians at road junctions and zebra crossingst to provide safe pedestrian pathways. An essential feature in urban planning and safety infrastructure.

TYPE: Pedestrian Guard Rails
DESIGN: Two metre sections that can be locked together.
MATERIAL: Galvanised metal.
FINISH: Hot dip galvanised or galvanised and polyester powder coated.
HEIGHT: Approx one metre above the ground.
SUPPORTS: End posts set at 2000mm centres.
GATES: NA.
USE: Provide pedestrian protection at road junctions and zebra crossings.

Request Quotation
